Intrapulmonary Blood Circulation
A schema depicting intrapulmonary blood circulation
Image ID: 8952
 Pricing
Hi-Resolution
23.4 MB EPS
Good For All Uses:
Print, Electronic and Digital
Please Note: Specialized programs, such as Adobe Illustrator, are needed to use EPS files.
Lo-Resolution
2250x2229 px
1.9 MB
RGB JPG
Best For:
Electronic and digital use: (e.g. websites, PowerPoint, broadcast, VHS, CD/DVD)
Netter ad clinical key
Intrapulmonary Blood Circulation

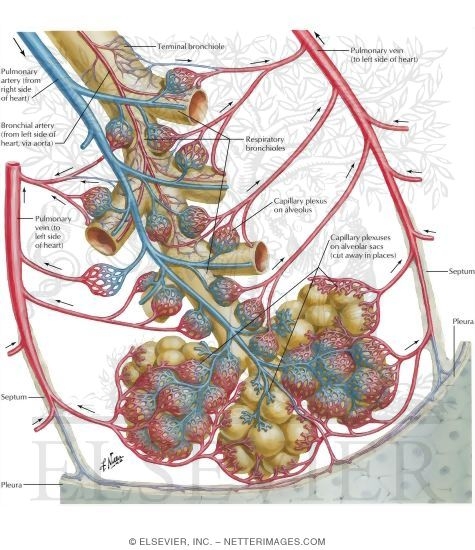

Figure 13.7 • Intrapulmonary Blood Circulation – The pulmonary circulation is a low–pressure, low–resistance circulation. Blood from the right ventricle and pulmonary artery is distributed to the pulmonary capillaries, where gas exchange takes place. The interface between the alveolar lumen and pulmonary capillary blood consists of a single layer of alveolar epithelium, basement membrane, and the one–cell–layer–thick capillary endothelium. Capillaries cover alveoli in this manner, providing for efficient gas exchange.
